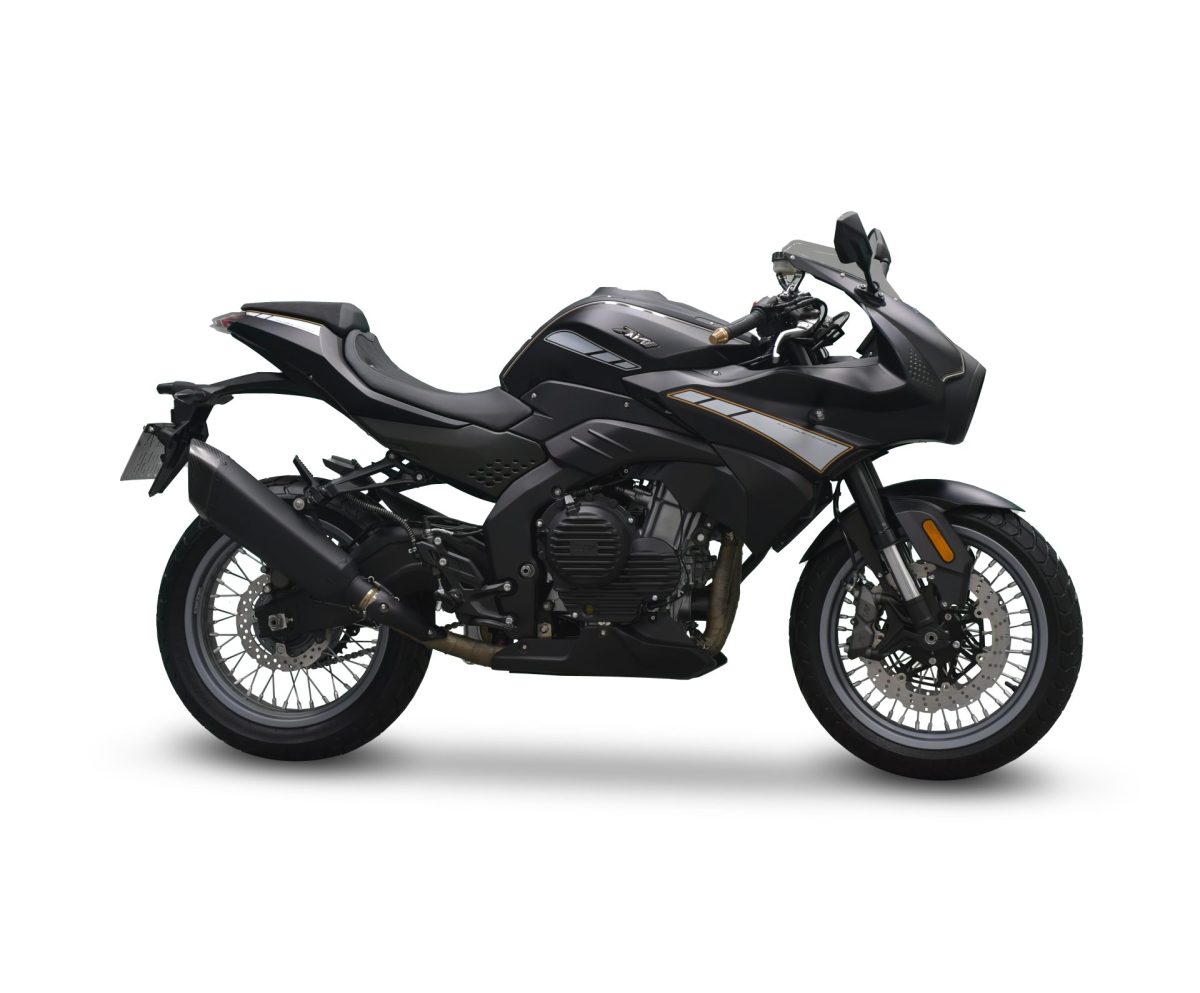

The AW Saber 525N adopts an all aluminum alloy body, which enhances structural rigidity and corrosion resistance, significantly improving driving safety and handling performance.
The gull wing rear rocker arm is also made of aluminum alloy, which enhances the support effect of the frame while increasing the torsional stiffness.
This motorcycle is designed for various riding conditions, with excellent multifunctionality and performance.

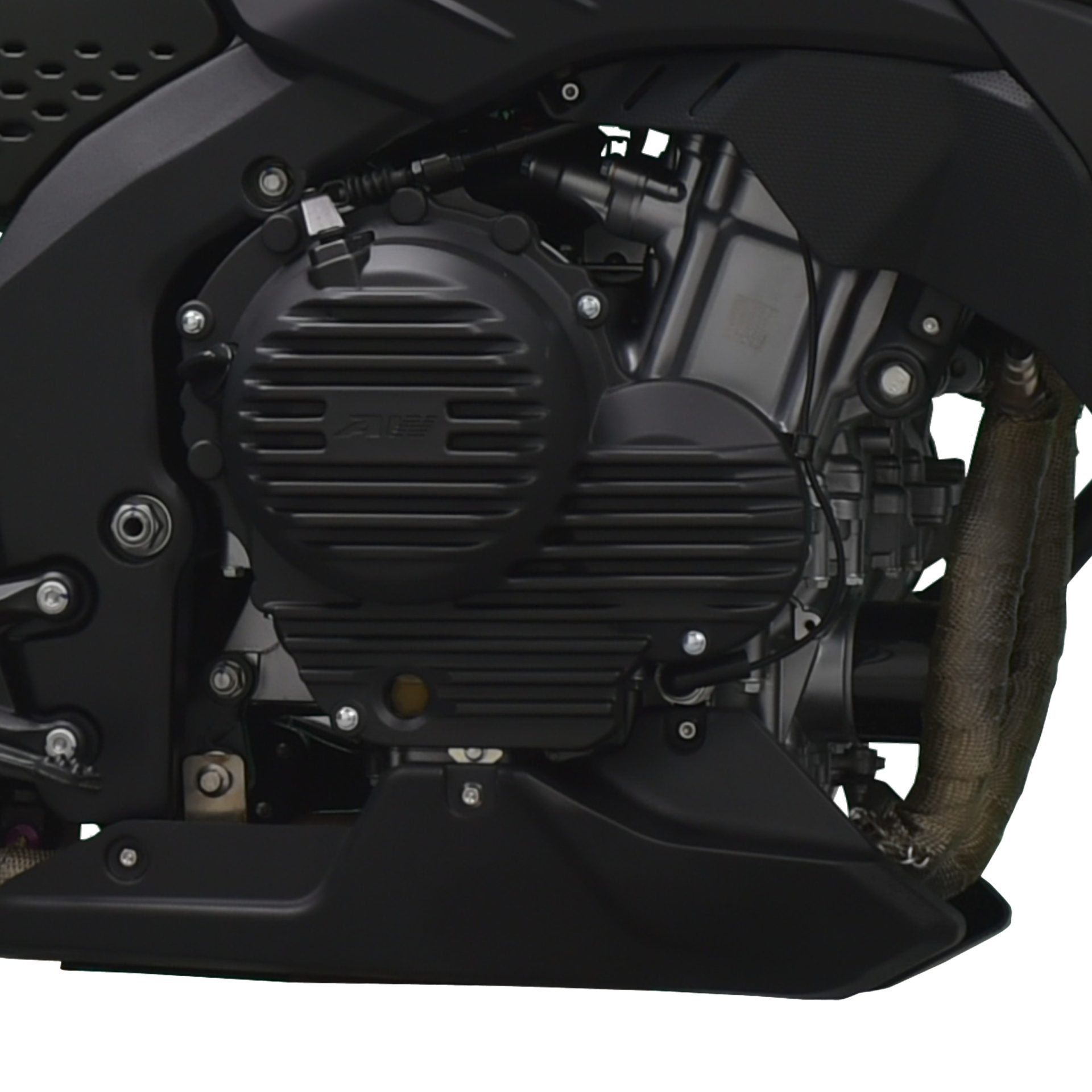

| Engine | |
| Engine model: | water cooled two cylinder DOHC 8 valves asynchronous engine |
| Displacement: | 497cc |
| Max power: | 41kw/9000rpm |
| Top torque: | 50.5N.m/7500rpm |
| Bore*Stroke: | 67*66.8mm |
| Fuel Supply System: | EFI |
| Transmission: | Wet Muti-blade international 6 gears |
| Driving model: | 520 thickened oil chain |
| Top speed: | 191km/H |

| Vehicle Spec | |
| L*W*H: | 2028*684*1108mm |
| Wheel base: | 1375mm |
| Seat height: | 785mm |
| Fuel tank capacity : | 16L |
| Net weight : | 178kgs |

| Security control | |
| Frame structure : | Aluminum alloy double-spar frame, Aluminum alloy swingarm |
| Front suspension: | 41mm inverted adjustable front shock absorber |
| Rear suspension: | Central type full-fuction adjustable rear shock absorber, aluminum alloy double swingarm. |

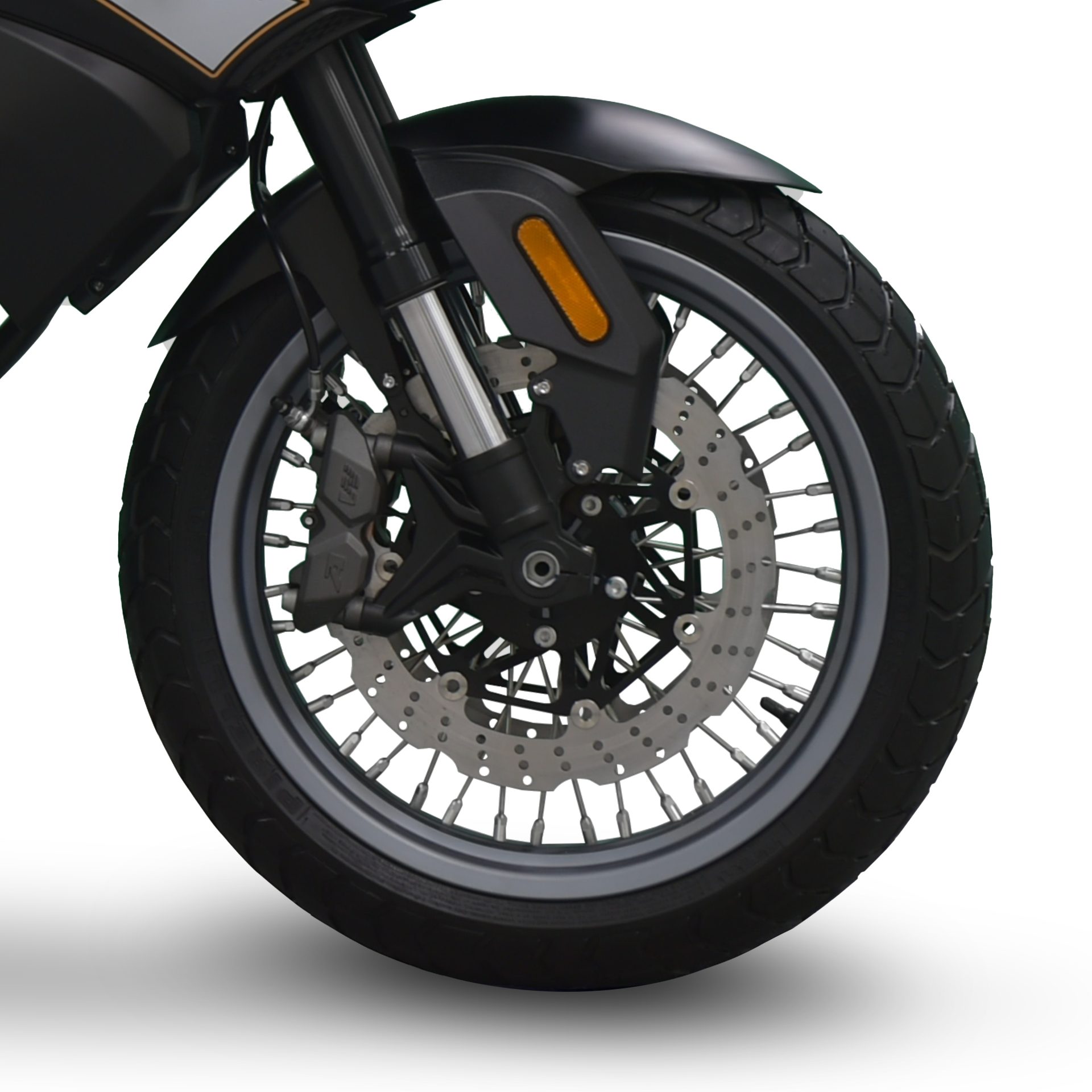

| Front brake: | 310mm double disc paired with 4-piston caliper (ABS) |
| Rear brake: | 220mm single disc paired with single-piston caliper(ABS) |
| Front tire: | 120/70 ZR17 M/C 58W |
| Rear tire: | 160/60 ZR17 M/C 69W |
